Industry
AI Hardware & Edge Compute
Thermal-critical parts for the AI buildout: cold plates, manifolds and enclosures that move heat.
FabVector machines AI Hardware & Edge Compute parts in Copper C110, Aluminum 6061-T6, Aluminum 6063-T5, from 1 piece, with instant online estimates, engineer-reviewed quotes in 24 hours and NDA-protected files. Delivery with duties handled to the US, Canada, UK and Australia.
- Materials
- Copper C110, Aluminum 6061-T6, Aluminum 6063-T5
- Minimum order
- 1 piece
- Estimate
- ~60s online
- Quote
- engineer-reviewed 24h
- IP
- NDA from upload
What slows this industry down
AI hardware is a thermodynamics problem wearing a compute costume: every watt the accelerator dissipates ends up in machined metal, and a cold plate that misses 0.05 mm flatness on the die-contact face throttles the whole node. Liquid-cooling manifolds need leak-tight passages and O-ring grooves where one porosity defect means a flooded server. Accelerator generations turn over yearly, so thermal hardware must be redesigned and requoted on silicon-launch timelines. Copper machining and ENP plating expertise is scarce exactly when the buildout needs it most.
Typical parts we machine
- GPU/ASIC cold plates and cooling lids
- Liquid-cooling manifolds and quick-disconnect blocks
- Inference-server chassis rails and trays
- Sealed edge-AI enclosures (enclosure-as-heatsink)
- Copper busbars and power-stage hardware
Detailed ai hardware & edge compute part solutions
GPU & ASIC Liquid Cold Plates
Direct-to-chip thermal hardware with contact flatness and liquid integrity controlled together.
AI Server Liquid-Cooling Manifolds
Clean, leak-controlled distribution blocks for server and rack liquid loops.
Edge AI Enclosures & Server Chassis
Rigid compute enclosures that align boards, connectors and thermal hardware.
AI Server Busbars & Power Hardware
Compact high-current conductors with protected electrical contact geometry.
Recommended materials
Copper C110
The conductivity king: when watts or amps per gram is the whole point of the part.
Aluminum 6061-T6
The default CNC aluminum: strong enough for most jobs, machines fast, anodizes well.
Aluminum 6063-T5
The cosmetic-finish aluminum: silky anodized surfaces for consumer-facing parts.
MIC-6 Cast Aluminum Plate
The flatness specialist: stress-relieved cast plate that will not move when you machine it.
Recommended finishes

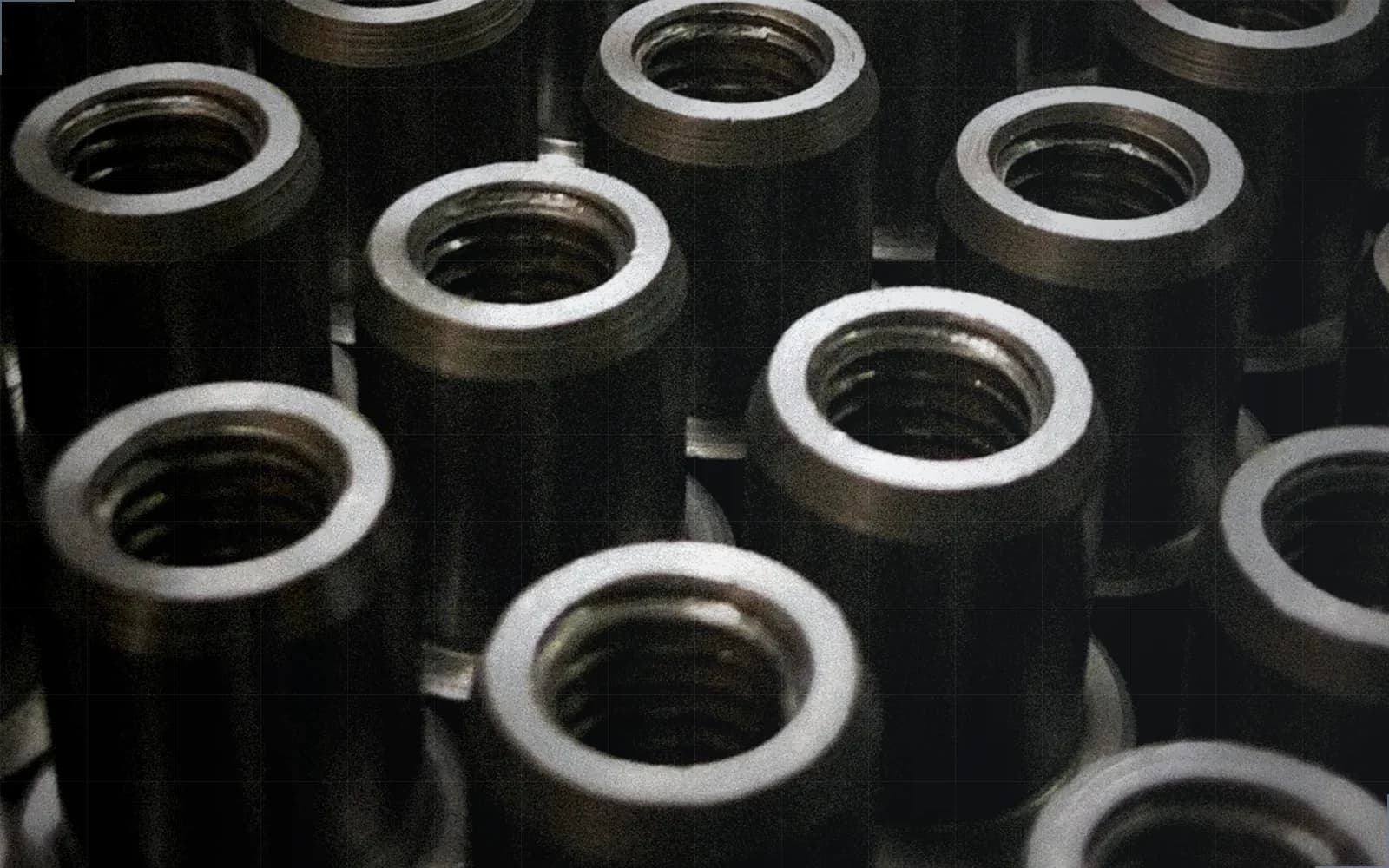

Electroless Nickel Plating (ENP)
Plating without electricity: dead-uniform thickness everywhere, bores and threads included.

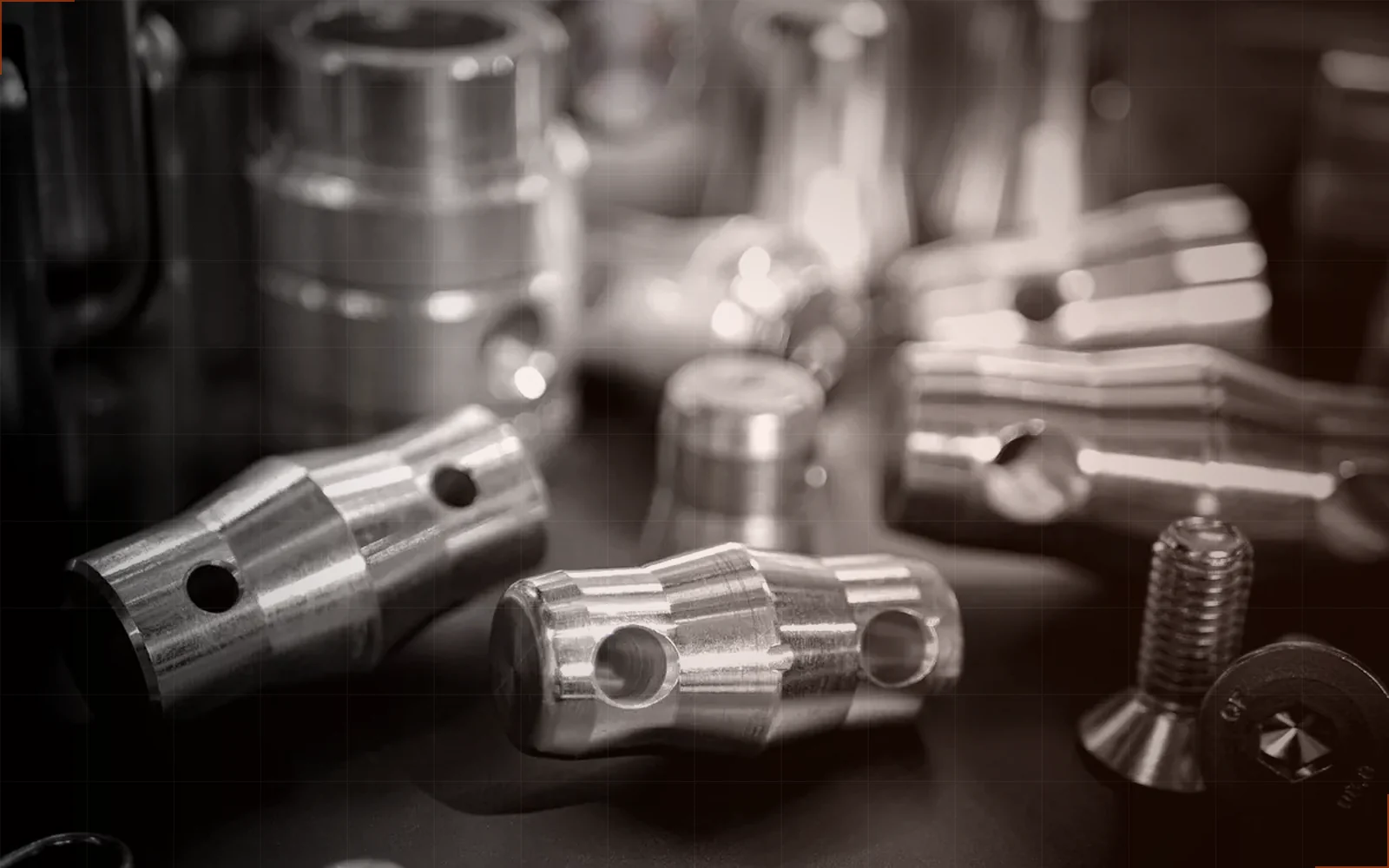

Anodizing Type II (Clear)
The standard aluminum finish: hard, clear oxide that keeps the metallic look.
Passivation
Chemical hygiene for stainless: strips embedded iron so the steel can be as stainless as advertised.
Certifications & standards
- ISO 9001
- We understand data-center hardware buyers require ISO 9001-level process control, with flatness and leak-test records per lot.
- RoHS / REACH
- We support RoHS/REACH compliance with material and plating declarations for parts entering electronic assemblies.
We understand and support these requirements; certification and documentation scope is confirmed per order.
Questions ai hardware & edge compute buyers ask
- Who machines liquid cooling cold plates for AI servers, and what matters most?
- Cold plates are a machining problem disguised as a thermal one: channel geometry in C110 copper or 6061, sealing-face flatness typically 0.05 mm or better, and leak-tight joining. We machine channel plates and lids as matched sets and hold the flatness on granite-verified fixtures, because a plate that measures fine but leaks at 2 bar is scrap.
- What tolerances do GPU baseplates and server chassis parts need?
- Die-contact surfaces want flatness in the 0.02–0.05 mm range over the die area and controlled surface finish for TIM performance; chassis and bracket work is ±0.1 mm territory. Splitting those two requirement classes to different machines is how the cost stays sane.
- How fast can AI hardware parts iterate from CAD change to new parts in hand?
- Upload to price range in about 60 seconds, engineering review inside 24 hours, and simple aluminum revisions shipped in 3–7 days. AI hardware programmes revise faster than any other sector we serve; the quoting loop, not the machining, is usually the schedule risk.
Relevant services
CNC Milling
3- and 4-axis vertical machining for housings, brackets, manifolds and structural parts.
5-Axis Machining
Simultaneous 5-axis machining for impellers, freeform surfaces and compound-angle features.
Production Machining
Dedicated fixturing, in-process CMM and SPC documentation for repeatable volume runs.
CNC machining service by country
Have a part in mind?
Upload CAD or drawings. Eligible CNC work gets an instant estimate; other processes move to engineer review. NDA-protected from the first byte.
Start an RFQ
